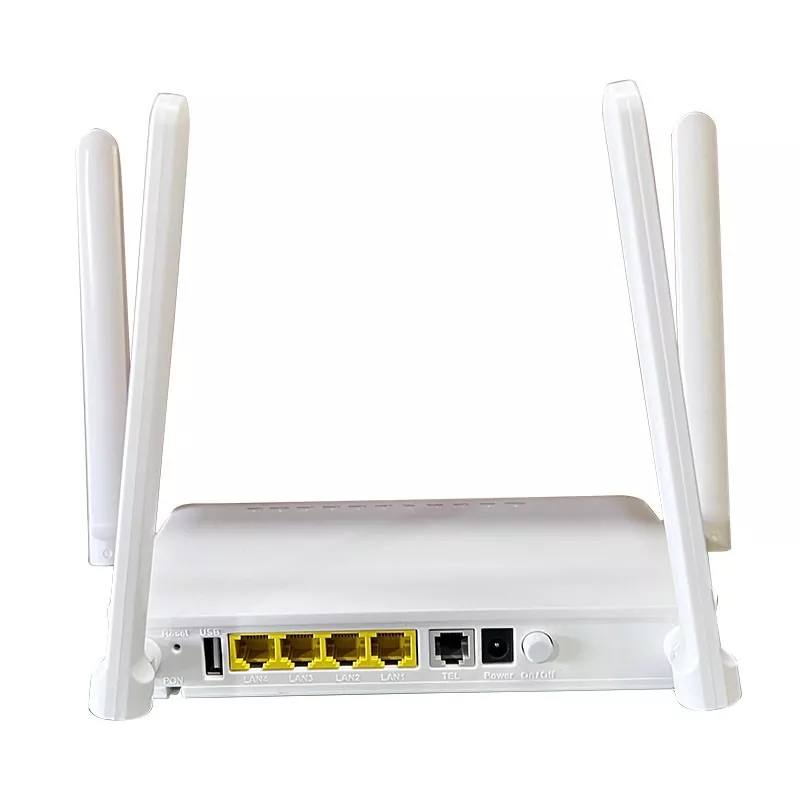

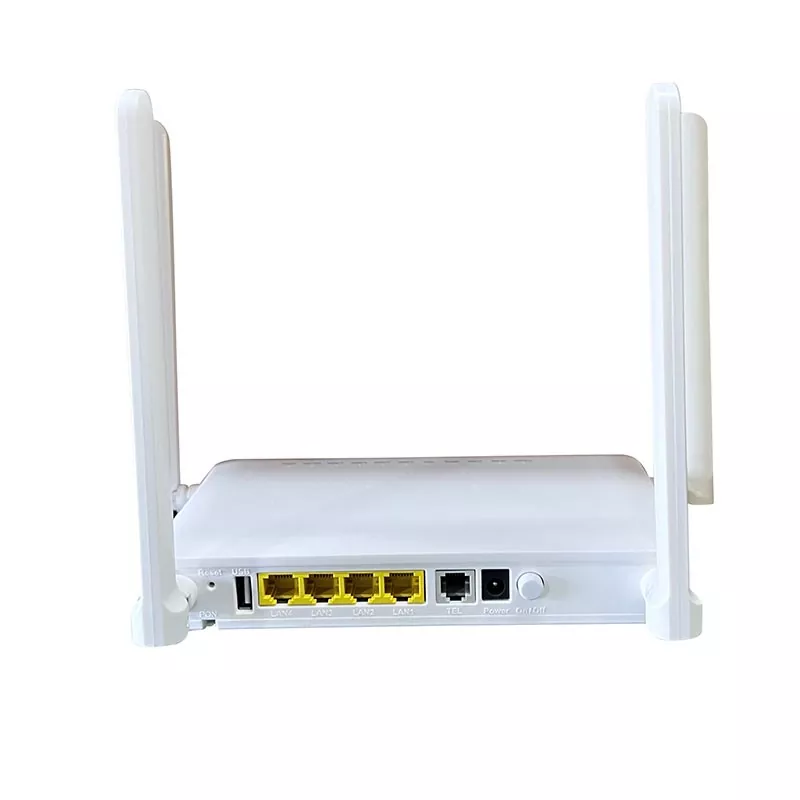

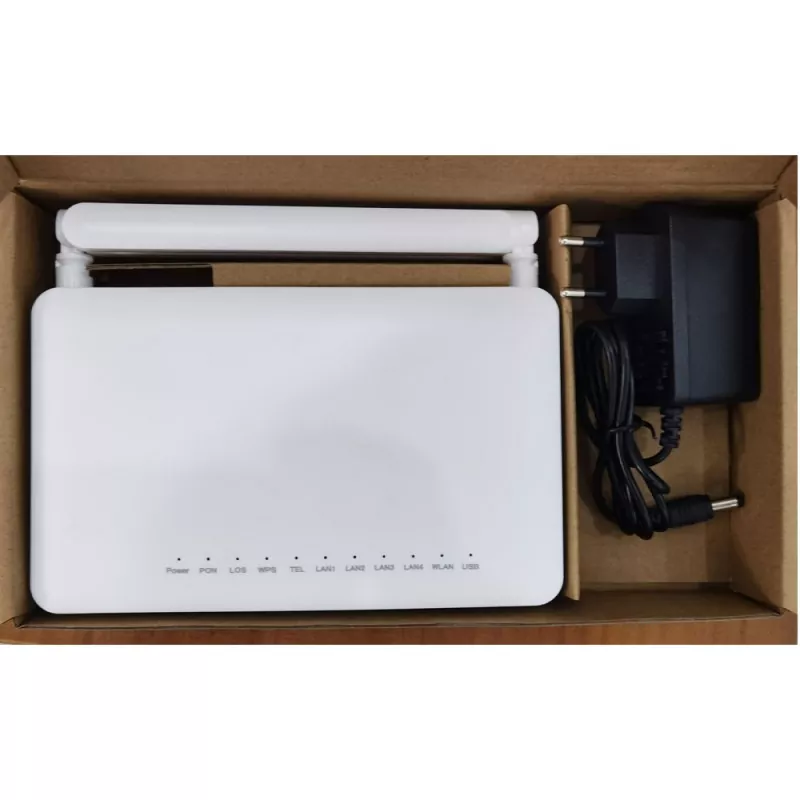

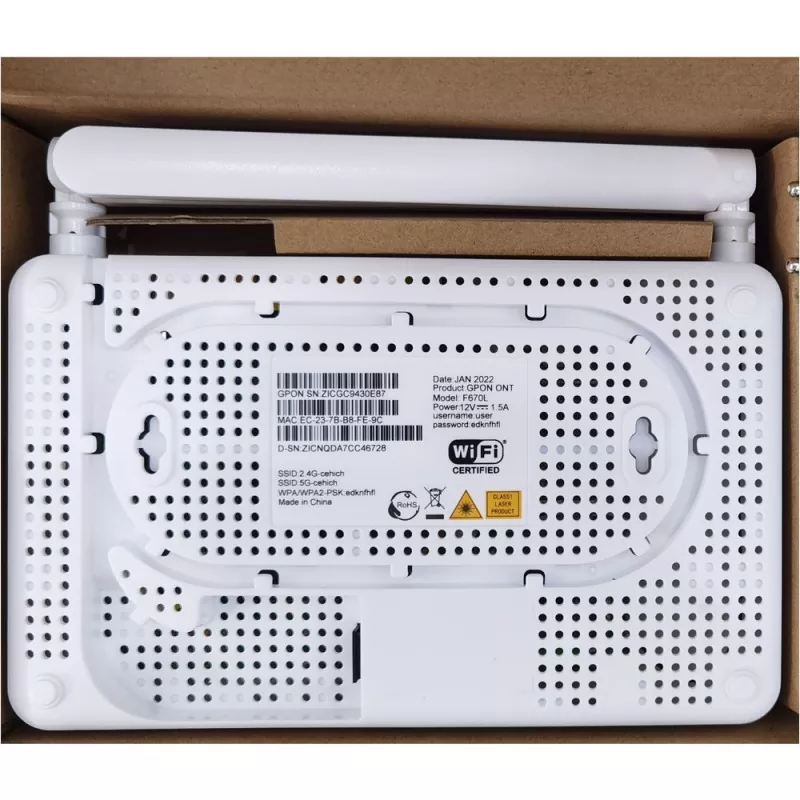

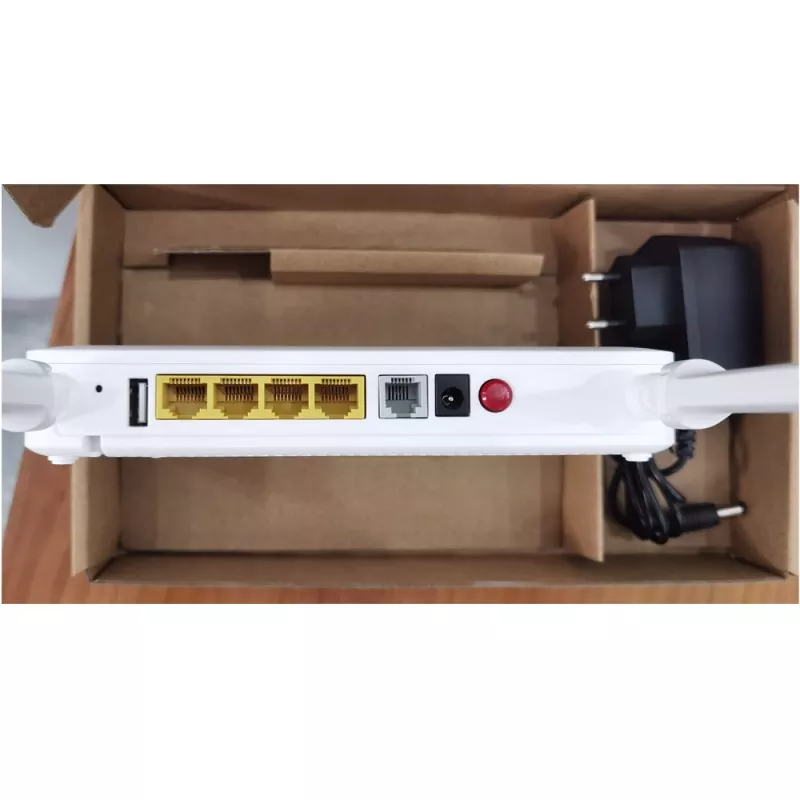

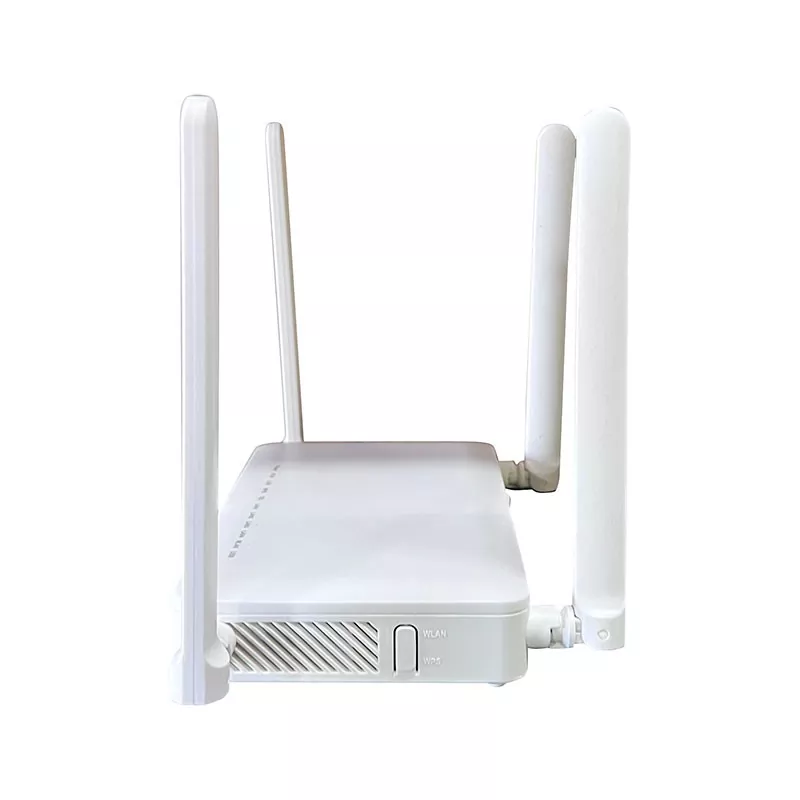

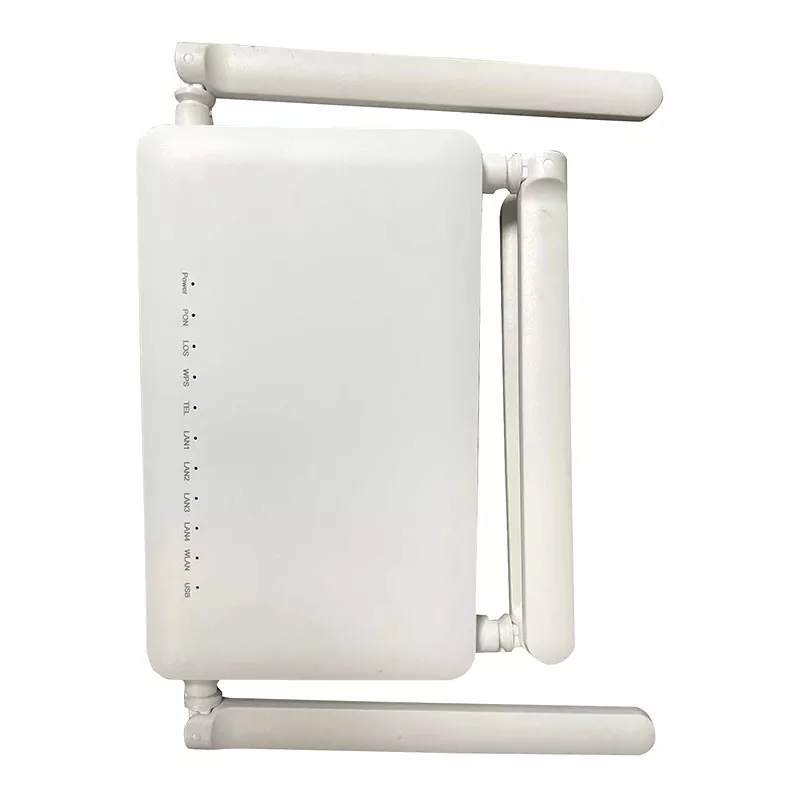

TENKILOMETERS kualitas dhuwur F670L 11 LIGHT DUAL BAND WIFI5 GPON ONU ONT FTTH yaiku AC1200 dual band Gigabit Premium triple-play GPON gateway. Model kasebut dilengkapi port LAN 1GE&3FE, port telpon siji lan Wi-Fi multi-stream generasi sabanjure, operasi bebarengan ing 2.4GHz 2×2 liwat 802.11n lan 5GHz 2×2 liwat 802.11ac. Adhedhasar syarat pelanggan, antena gain maksimal 5dBi bisa nambah area jangkoan Wi-Fi lan nambah kinerja
|
Model |
ZXHN F670L 11 cahya |
|
antarmuka PON |
4GE+1POTS+2USB+2.4G/5G WIFI, 5dBi |
|
Panjang gelombang laser |
Tx 1310nm Rx 1490nm |
|
Antarmuka optik |
Konektor SC/UPC |
|
Kondisi kerja |
Suhu: 0 ℃ ~ 50 ℃ |
|
Kelembapan: 10% ~ 90% (non-kondensasi) |
|
|
Kondisi panyimpenan |
Suhu: -30 ℃ ~ 60 ℃ |
|
Kelembapan: 10% ~ 90% (non-kondensasi) |
|
|
sumber daya |
DC 12V/1.5A |
|
Konsumsi energi |
≤ 6 W |
|
ukuran |
245 mm × 215 mm × 40 mm |
|
Bobot |
240 g |
|
Antarmuka Wi-Fi |
IEEE 802.11b/g/n |
|
Frekuensi operasi: 2.400-2.4835 GHz |
|
|
Dhukungan MIMO, kacepetan nganti 300Mbps |
|
|
2T2R, 2 njaba 5dBi antena |
|
|
Dhukungan: Multiple SSID |
|
|
Saluran: 13 |
|
|
Tipe modulasi: DSSS, CCK lan OFDM |
|
|
Skema kode: BPSK, QPSK, 16QAM lan 64QAM |
|
|
antarmuka CATV |
RF, Daya Optik: 2 ~ 18 dBm |
|
Mundhut refleksi optik: ≥ 45 dB |
|
|
Optical nampa dawa gelombang: 1550 ± 10nm |
|
|
Range frekuensi RF: 47 ~ 1000 MHz, impedansi output RF: 75Ω |
|
|
Tingkat output RF: ≥ 82dBuV (-7dBm input optik) |
|
|
Range AGC: 2 ~ 7dBm/-4 ~ 13dBm/-5 ~ 14dBm |
|
|
MER: ≥ 32dB(-14dBm input optik), >35(-10dBm) |
● GPON ONT, 4*GE, 1*POTS, 2*USB, 2.4G/5G WiFi
● Tipe konektor SC/UPC
● ENG firmware
● Standar WiFi: IEEE 802.11ac

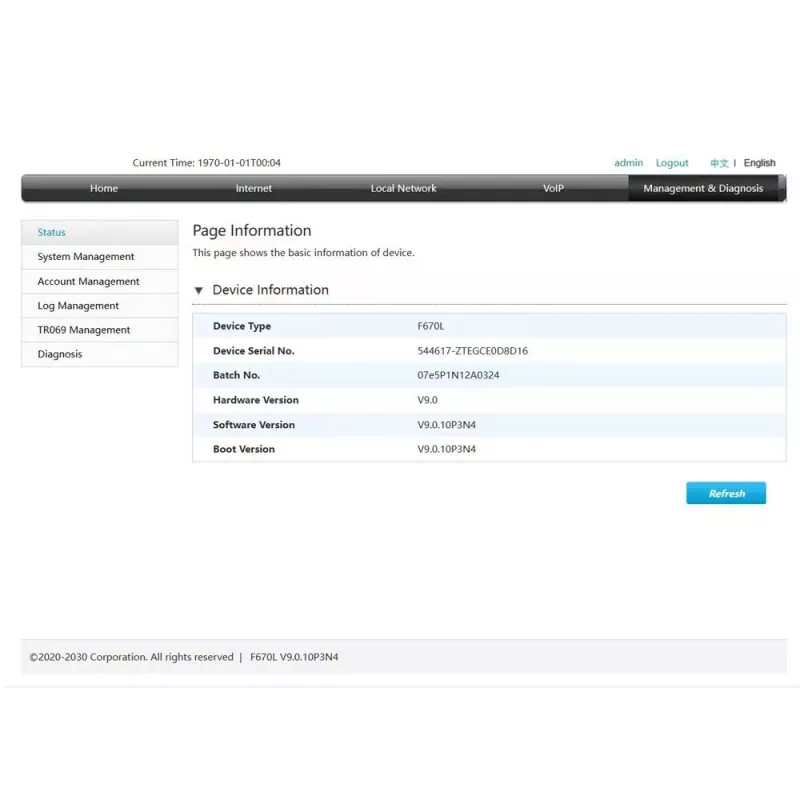

● Bisa diatur dening OLT utawa Web utawa NMS
● Packing ukuran: 245*215*40mm
● Fungsi nuntun didhukung
● Kompatibel Huawei/ZTE OLT
