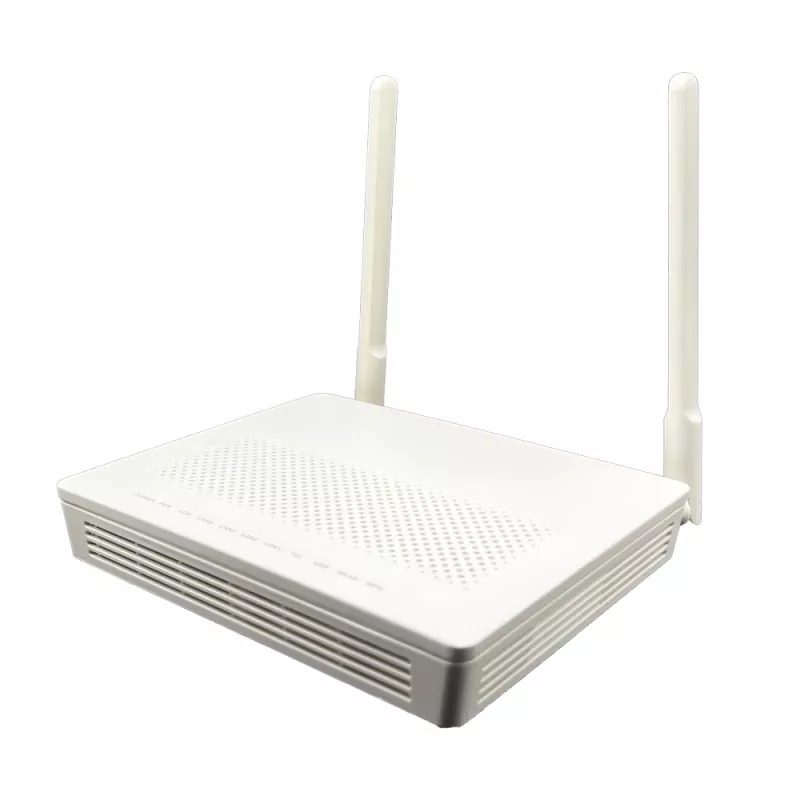

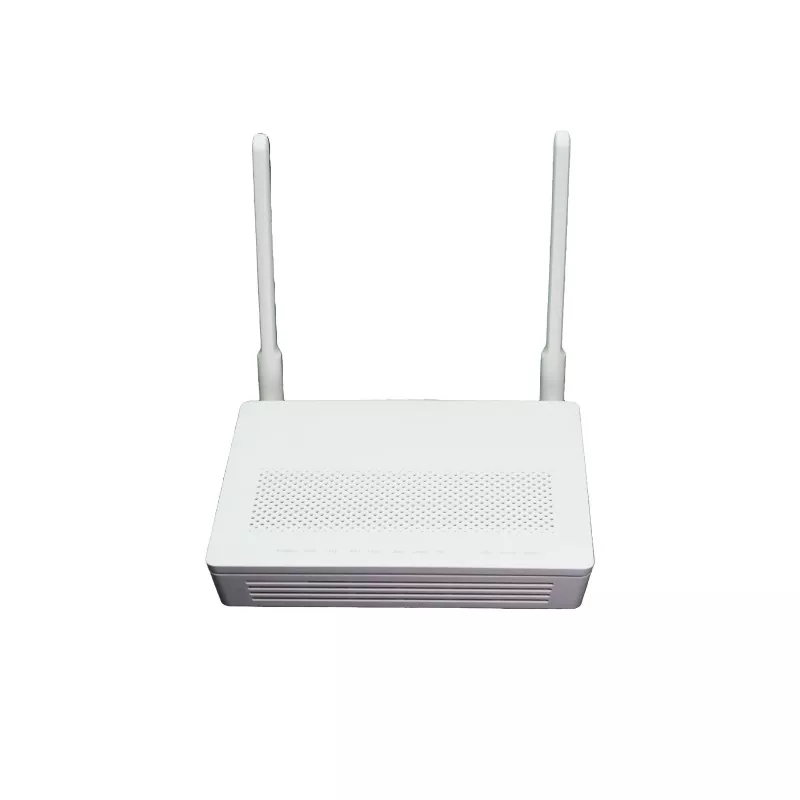

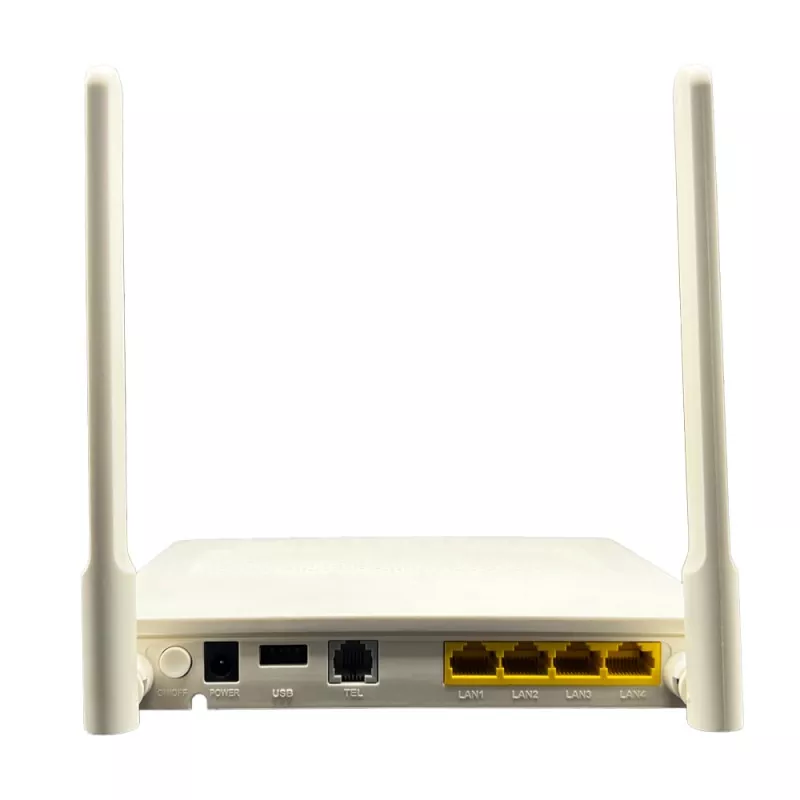

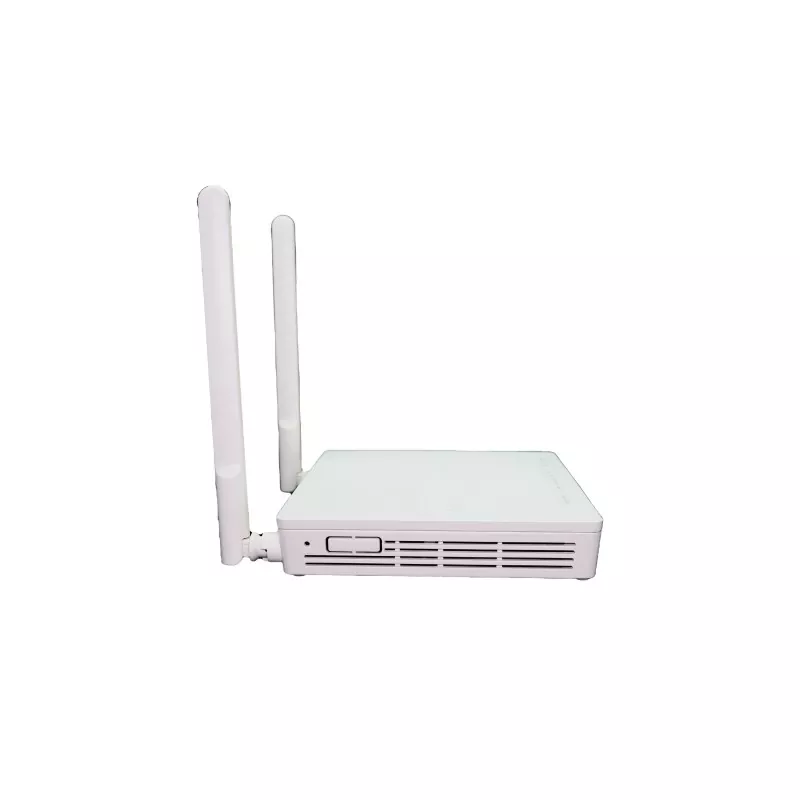

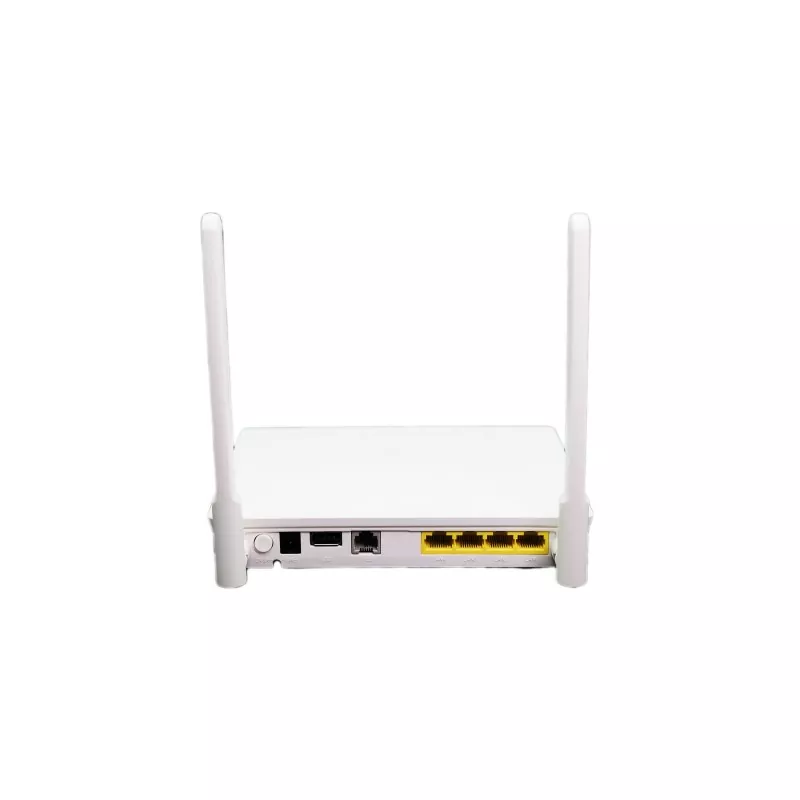

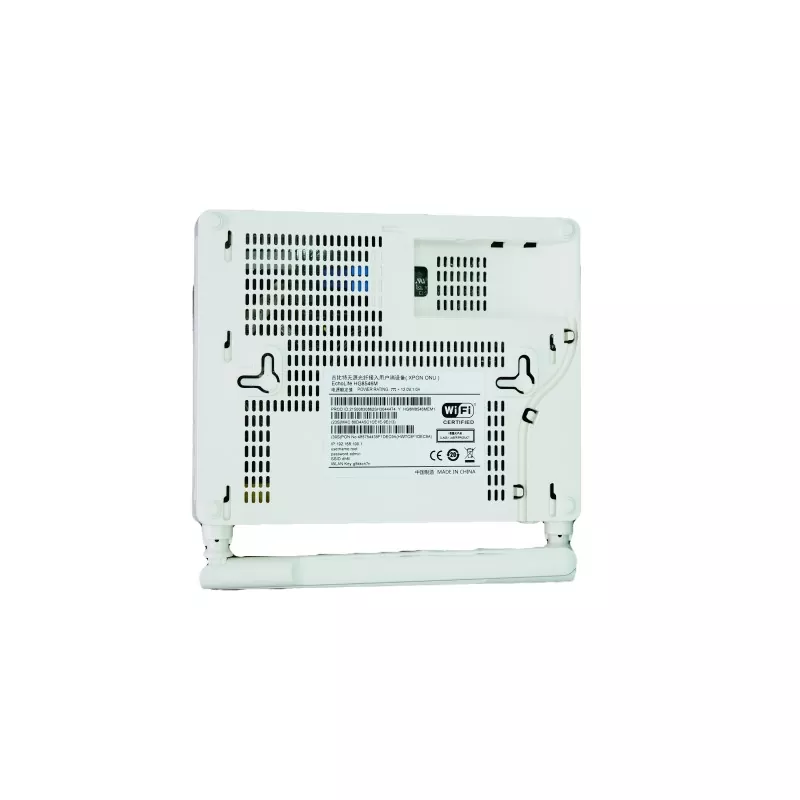

Huawei's HG8546M Single Band GPON ONU ONT 1GE+3FE minangka terminal jaringan optik (ONT), sing minangka gateway ngarep dhuwur sing dirancang kanggo solusi FTTH. Panggunaan teknologi GPON SC/UPC mbisakake pangguna ngarep lan SOHO ngakses Internet ultra-broadband. HG8546M nawakake 1 port telpon POTS, 1 port gigabit GE, 3 port FE Ethernet Fast lan 1 port USB. Ngidini sampeyan ngirim jaringan Wi-Fi nirkabel ing pita 2,4 GHz, miturut standar IEEE 802.11b/g/n. Transmisi nirkabel maksimal yaiku 300 Mbps. Piranti kasebut dilengkapi karo rong antena eksternal, saben duwe gain 2 dBi. H8546M njamin solusi terminal becik lan kamungkinan ndhukung layanan mangsa ing lapangan implementasine FTTH. Produk sing ditawakake nyedhiyakake layanan sing dipercaya lan bisa digunakake kanthi becik ing omah lan bisnis cilik. Piranti kasebut uga kalebu sumber daya DC 12 V 1 A kanthi plug Eropa (ora ana adaptor).
Terminal GPON ONT
Port GPON SC/UPC
1 gigabitowy port Ethernet
3 port Ethernet Cepet
1 port USB
1 port telpon (POTS)
Kamungkinan ngirim jaringan Wi-Fi ing pita 2,4 GHz
Kacepetan transmisi nirkabel maksimal 300 Mbps
Loro antena njaba, saben gain 2 dBi
| Fitur / Filter | |
| Jumlah port LAN | 4x [10/100M (RJ45)] |
| Standar PON | GPON |
| Standar Jaringan Nirkabel | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, |
| Port USB | 1x USB Kab |
| port VoIP | 1x POTONG |
Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s,
| Antarmuka | |
| Port GPON |
1 SC/UPC GPON port, Kelas B+ Nampa sensitivitas: -27 dBm Dawane gelombang: US 1310 nm, DS 1490 nm WBF Pemetaan fleksibel antarane GEM lan port TCONT G.984.3 Dwi-sisi FEC SR-DBA lan NSR-DBA |
| Port Ethernet |
1 x 10/100/1000 BASE-T (RJ-45) port 3 x 10/100 BASE-T (RJ-45) port Transmisi transparan VLAN |
| Port POTS |
RUN maksimum: 4 G.711A/u, G.729a/b lan G.722 T.30/T.38/G.711 fax DTMF Telpon darurat (liwat protokol SIP) |
| Port USB |
1 port USB 2.0 Kemampuan kanggo nggawe drive jaringan adhedhasar FTP |
| WLAN |
IEEE 802.11b/g/n 2x2 MIMO Antena 2 dBi WMM Multiple SSIDs WPS |
| Tipe konektor | SC/UPC |
| Karakteristik Fisik | |
| ukuran | 176 mm x 138 mm x 28 mm |
| Libra | <500 g |
| Kisaran suhu operasi sing diidini | Saka 0 ° C nganti 40 ° C |
| Kelembapan udara sing diidini | 5% -95% RH, non-kondensasi |
| Input daya | 100-240 V AC, 50-60 Hz |
| Daya Sistem | 11-14 V DC, 1 A |
| konsumsi daya statis | 4,5 W |
| konsumsi daya maksimum | 12 W |

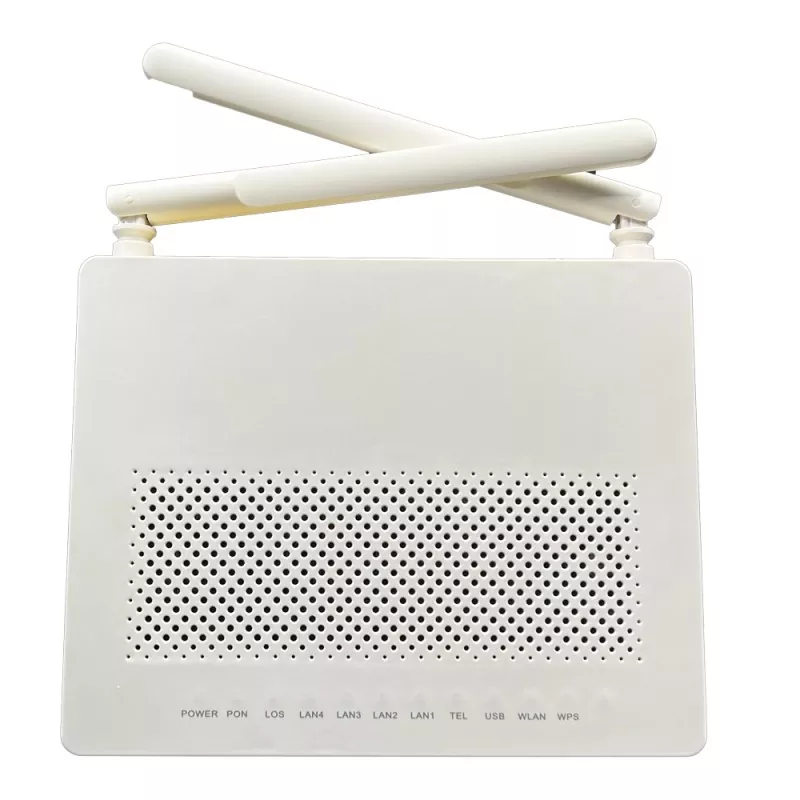

| LED | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
| Fungsionalitas | |
| Sambungan pinter |
Cakupan Wi-Fi Cerdas (Dhukungan V300R015C10) SIP/H.248 Adaptif Sembarang Port, Sembarang Layanan Parental Control (Dhukungan V300R015C10) |
| Operasi lan pangopènan cerdas |
OMCI Aktif, Pasif ONT Discovery lan Isolasi Simulasi Telpon / Internal, Test njaba Tes Simulasi PPPoE/DHCP Simulasi WLAN |
| Multicast |
IGMP v2/v3 snooping IGMP v2 server proxy Server proxy IGMP v3 (dukungan V300R015C10) MLD v1/v2 snooping Layanan multicast Wi-Fi |
| QoS |
Ethernet Port Rate Limit 802.1 Prioritas S/WRR/SP + WRR Limit Tarif Paket |
| O&M |
OMCI/Web UI/TR069 Dual Gawe serep lan mulihake Software |
| Keamanan |
SPI firewall Serangan anti-Dos Filtering MAC/IP/URL |
