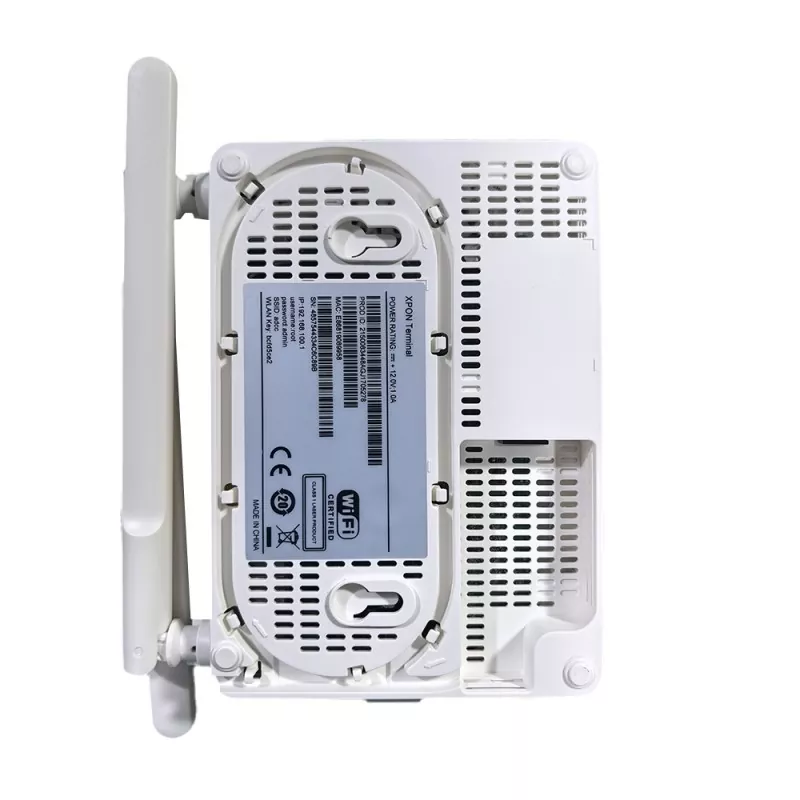

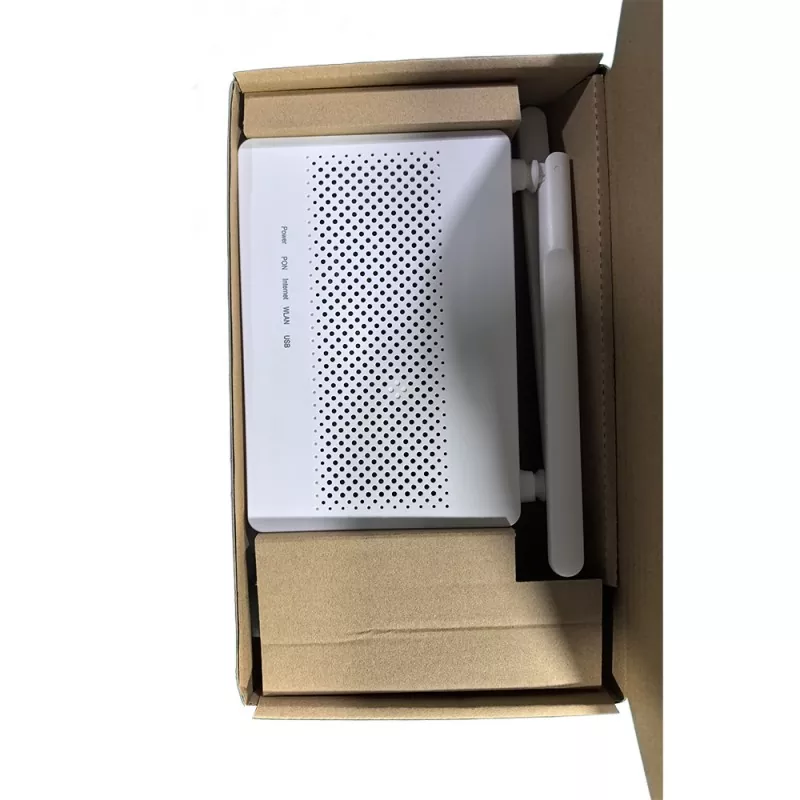

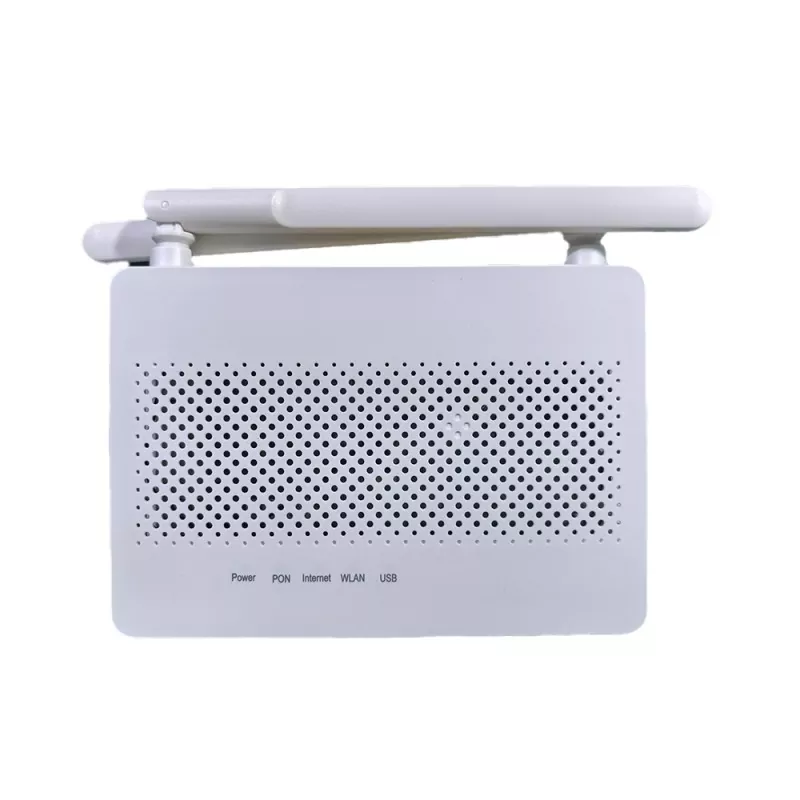

TENKILOMETERS kualitas tinggi HS8145C5 Single Band XPON WIFI ONU ONT Optical Network Terminal (ONT) GPON, gateway ngarep mutakhir dirancang kanggo solusi FTTH.
Nggunakake teknologi GPON, nyedhiyakake akses ultra-broadband menyang omah lan kantor cilik. Dilengkapi siji port POTS, siji port Gigabit Ethernet (GE), lan telung port adaptasi otomatis Fast Ethernet (FE), bebarengan karo port Wi-Fi, iki njamin konektivitas lancar kanggo macem-macem piranti.
Kapabilitas nerusake kinerja dhuwur, njamin pengalaman pangguna sing luar biasa kanggo layanan video VoIP, Internet, lan HD. Iki solusi terminal sing cocog, nyedhiyakake dhukungan layanan sing siap ing mangsa ngarep kanggo panyebaran FTTH.
|
Deskripsi Produk |
|
|
Item teknis |
Katrangan |
|
|
|
|
Out Port ngemot |
1GE+3FE+1POT+1UB+WiFi |
|
sinyal WIFI |
2.4G WiFi |
|
Keuntungan nirkabel |
2db |
|
USB |
2.0 |
|
LAN |
1*10/100/1000Mbps port Ethernet adaptif, full/half duplex, antarmuka RJ45 |
|
TEL |
H248/SIP Swara Protokol |
|
Jembatan PPPOE |
Dhukungan |
|
Firmware |
Inggris |
|
Ukuran / bobot |
153mm * 125mm * 32mm / 176g |
|
port serat |
1 antarmuka GPON/EPON, serat ingle, tingkat Hilir 2.5Gbps, Tingkat hulu 1.25Gbps |
|
Dawane gelombang |
Tx 1310nm, Rx 1490nm |
|
Antarmuka serat |
SC/UPC/APC Singal mode |
|
sensitivitas RX |
>-28dBm (1490nm) |
|
daya DC |
12V 1A, adaptor daya AC-DC eksternal |
|
Tombol |
Reset, Daya, Wlan, Wps |
|
Operasi |
Suhu kerja: -5- + 55 ℃ kelembaban kerja: 10-90% (non-kondensasi) |
|
Panyimpenan |
Suhu panyimpenan: -30 ℃ - + 60 ℃ asor panyimpenan: 10-90% (non-kondensasi) |
● Tipe Konektor: RJ-11
● Tingkat Transmisi: 64 kbit/s
● Tipe Kabel: Twisted Pair
● Line Coding: Pulse Code Modulation (PCM)
● Frame Protocol: Time Division Multiplexing (TDM)
● Kepatuhan Standar: ITU-T Q.551, ITU-T Q.552
Fitur:
1. Plug-and-Play: Gampang masang layanan karo siji klik ing NMS, mbusak perlu kanggo konfigurasi ing situs.
2. Diagnosis Jarak Jauh: Deteksi kesalahan remot liwat tes loop-line port POTS, emulasi panggilan, lan emulasi dial-up PPPoE.
3. Ngawasi Link: Entuk deteksi link end-to-end kanthi 802.1ag Ethernet OAM, njamin stabilitas jaringan.
4. High-Speed Forwarding: Pengalaman 900 Mbit/s forwarding ing skenario NAT, njamin transmisi data cepet.
5. Kapabilitas IPv6: Ndhukung IPv6 / IPv4 tumpukan dual lan DS-Lite, njamin kompatibilitas karo standar jaringan modern.
