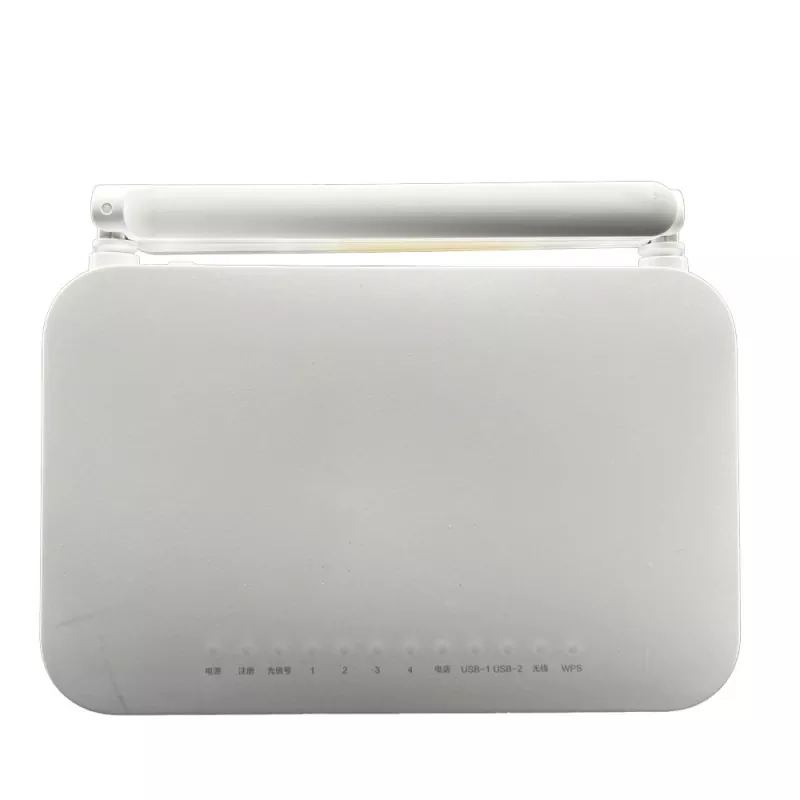

Pemasok TENKILOMETERS HN8346X6 DUAL BAND WIFI6 XG-PON ONU ONT FTTH yaiku Wi-Fi 6 10 Gigabit ONT saka solusi akses optik kabeh Huawei, sing nyadari akses ultra-broadband pangguna liwat XG-PON utawa teknologi 10G EPON asimetris. Nyedhiyakake 4 antarmuka Gigabit Ethernet, 1 antarmuka swara POTS, 2 antarmuka USB, 1 antarmuka Wi-Fi 2.4G lan antarmuka Wi-Fi 5G, kanthi efektif njamin swara, data lan 4K / VR liwat kemampuan nerusake kinerja dhuwur Nyedhiyakake pelanggan kanthi becik kabeh- solusi akses optik lan kapabilitas dhukungan bisnis berorientasi mangsa.
|
Paramèter |
HN8346X6 |
|
Bobot (Tanpa Adaptor Daya) |
Kira-kira 400 g |
|
Suhu operasi |
0–40°C |
|
Kelembapan Operasi |
5–95% RH (non-kondensasi) |
|
Input Adaptor Daya |
100–240 V AC, 50/60 Hz |
|
Sistem Power Supply |
11-14 V DC, 1,5 A |
|
UNI |
4 x GE, 1 x POTS, 1 x USB, 2.4G/5G Wi-Fi 6 |
|
NNI |
XG-PON |
|
Konsumsi Daya Maksimum* |
18 W |
|
Antena |
Antena njaba |
|
Mode Instalasi |
Desktop |
|
Ukuran (L x W x H) |
40 x 185 x 120 mm (tanpa antena lan bantalan eksternal) |
Antarmuka serat optik: SC/UPC
XG-PON: Kelas N1/N2a/E1
Asimetris 10G EPON: Kelas PRX 30
Nampa sensitivitas:
XG-PON: -28dBm
Asimetris 10G EPON: -28.5dBm
dawane gelombang:
Hulu 1260-1280nm, hilir 1575-1580nm (XG-PON/asimetris 10G EPON)
Dukungan band stop filter (WBF)
pemetaan fleksibel antarane GEM Port lan TCONT
metode verifikasi:
SN/Sandi/SN + Sandi/ OMCI-based mutual authentication (XG-PON);
MAC/Key/LOID (asimetris 10G EPON)
Ndhukung hulu lan hilir FEC (Forward Error Correction)
DBA ndhukung SR lan NSR
Tingkat uplink lan downlink:
Hulu 2.5Gbps, hilir 10Gbps (XG-PON);
Hulu 1.25Gbps, hilir 10Gpbs (asimetris 10G EPON)
IEEE 802.11 b/g/n/ax(2.4G)
IEEE 802.11 a/n/ac/ax(5G)
2×2 MIMO (2.4G&5G)
gain antena: 5dBi
WMM (Wi-Fi Multi Media)
Multiple SSID
