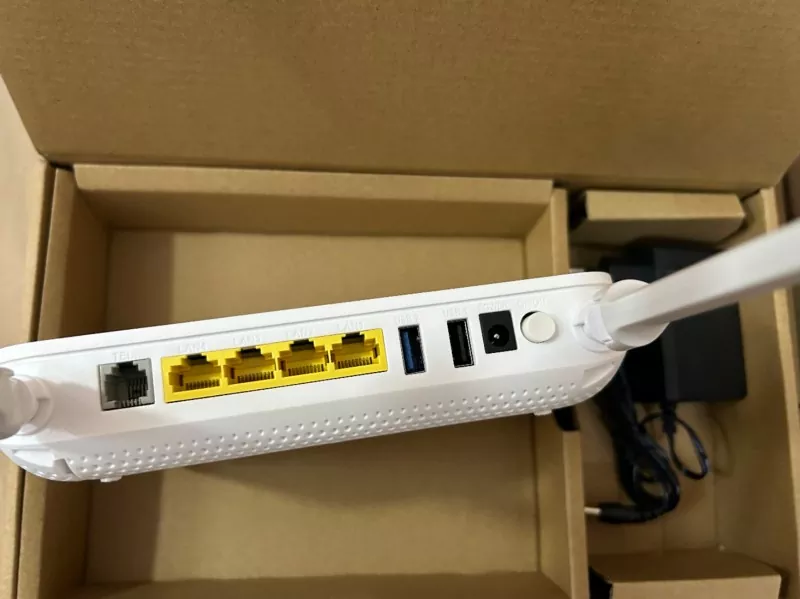

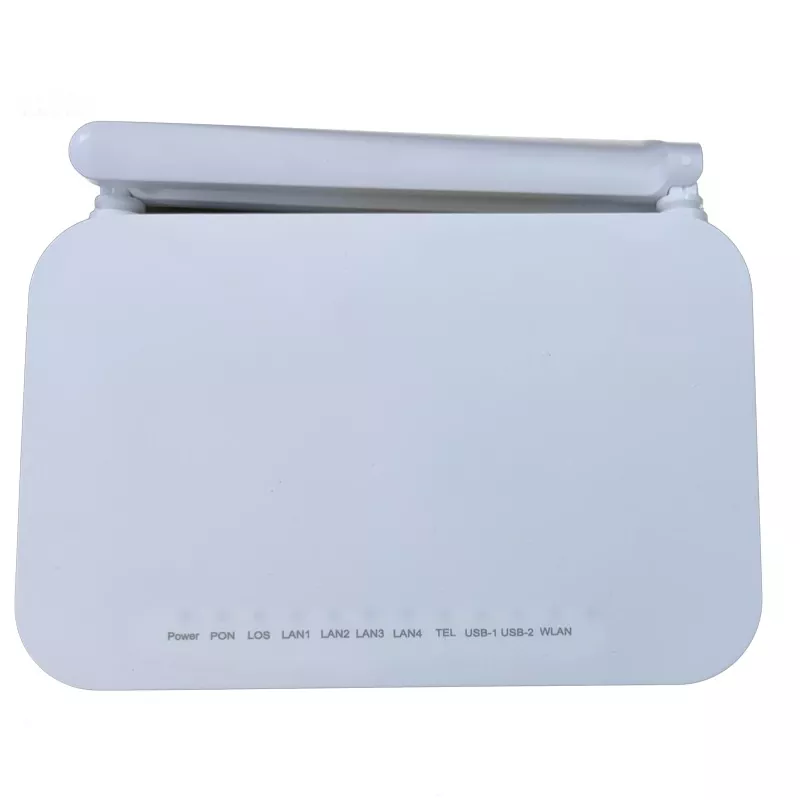

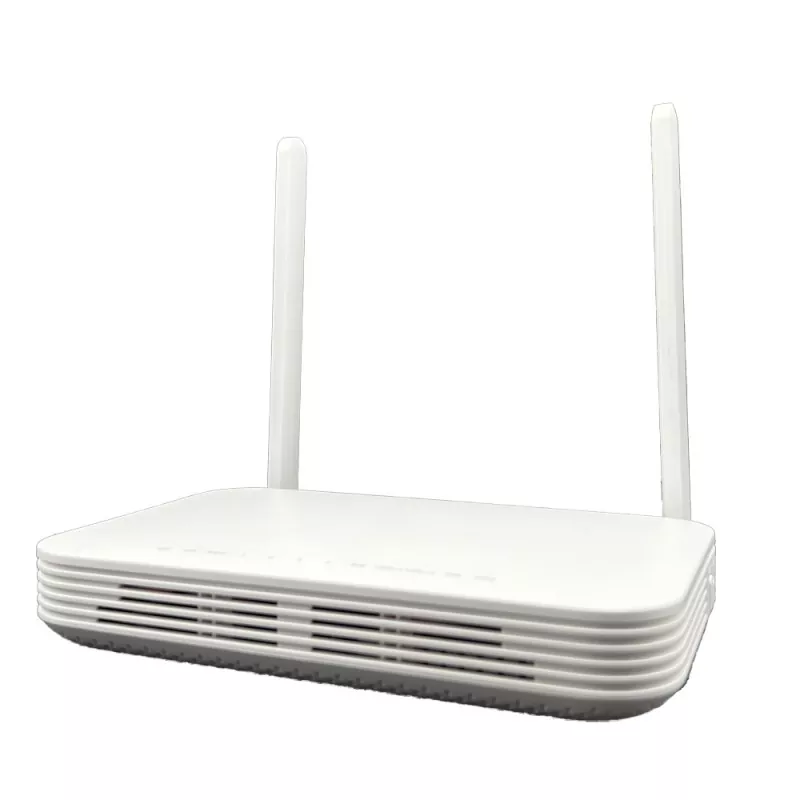

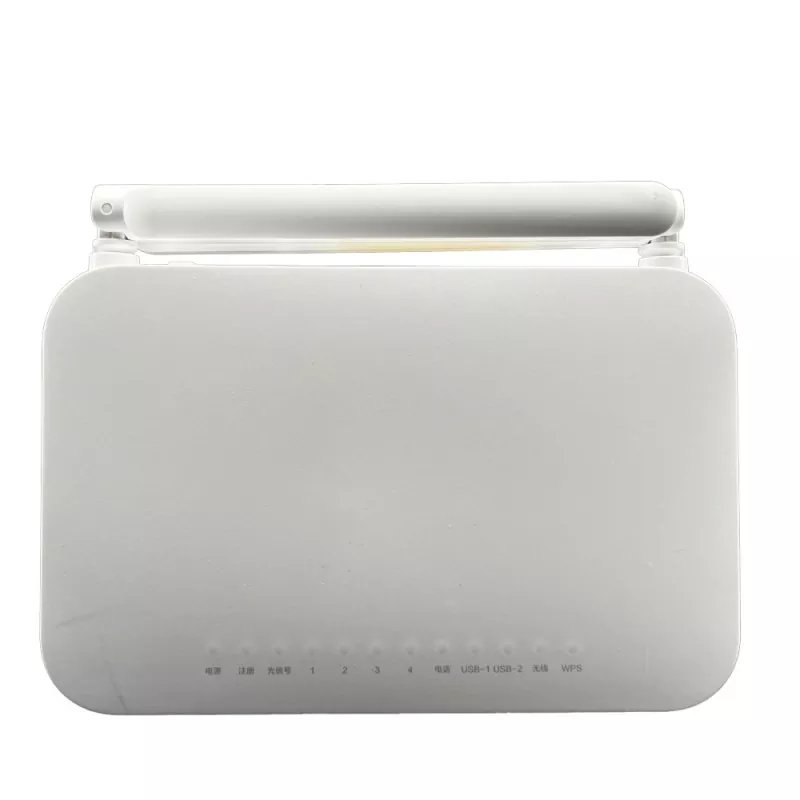

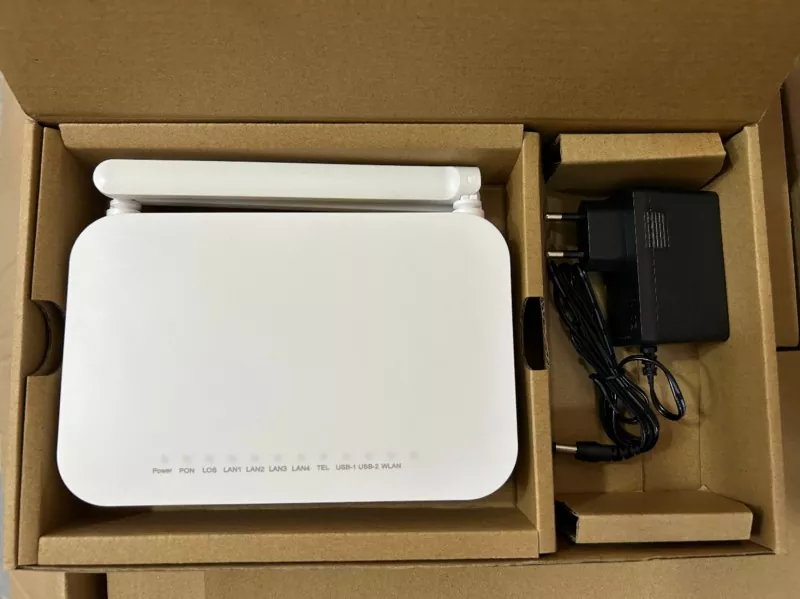

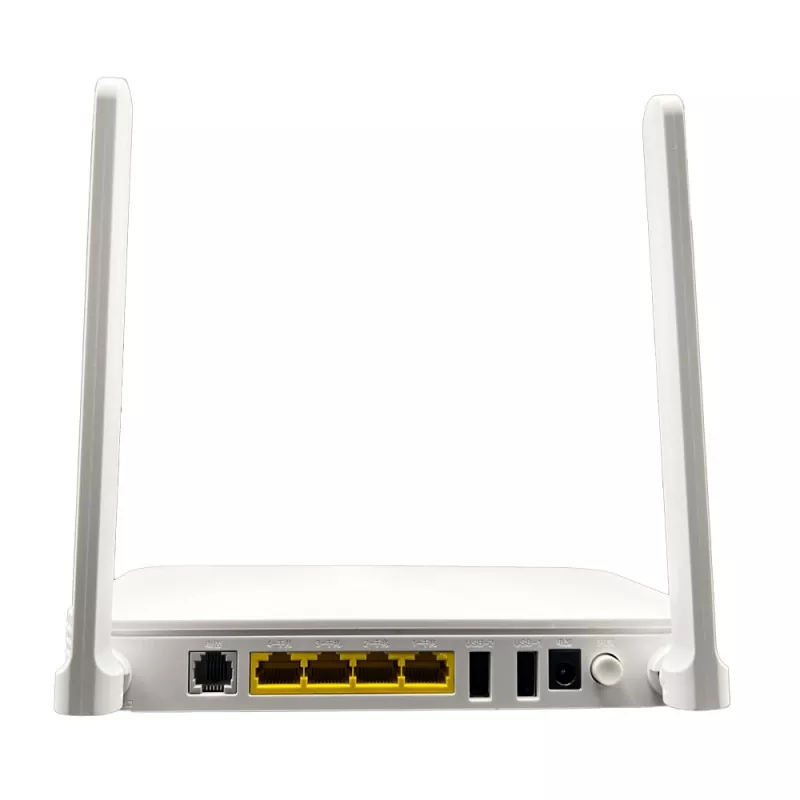

HS8346X6 DUAL BAND WIFI6 GPON ONU ONT FTTH minangka Wi-Fi 6 routing-type Optical Network Terminal (ONT) sing cerdas. Model iki nggunakake teknologi Gigabit Passive Optical Network (GPON) kanggo nawakake akses ultra-broadband, kinerja dhuwur, lan jangkoan sing amba kanggo pangguna. Kanthi kinerja terusan sing dhuwur — njamin pengalaman sing luar biasa kanggo layanan video swara, data, lan High Definition (HD) — uga kapabilitas dhukungan layanan berorientasi ing mangsa ngarep lan manajemen jaringan sing digambarake, HS8346X6 mbantu perusahaan nggawe solusi akses kabeh-optik sing kuat. Piranti kasebut nduweni papat port GE, siji port POTS, lan siji port USB, lan konektivitas Wi-Fi 2.4G lan 5G.
|
Model |
EG8145X6 |
|
Ukuran (L x W x H) |
35 x 195 x 125 mm (tanpa antena lan bantalan eksternal) |
|
Bobot (Tanpa Adaptor Daya) |
Kira-kira 372 g |
|
Suhu operasi |
0–40°C |
|
Kelembapan Operasi |
5–95% RH (non-kondensasi) |
|
Input Adaptor Daya |
100–240 V AC, 50/60 Hz |
|
Sistem Power Supply |
11-14 V DC, 1,5 A |
|
UNI |
4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6 |
|
NNI |
GPON |
|
Konsumsi Daya Maksimum* |
18 W |
|
Antena |
Antena njaba |
|
Mode Instalasi |
Desktop |
|
Port POTS |
• REN maksimal: 4 |
|
• G.711A/μ, G.729a/b, lan G.722 encoding/decoding |
|
|
• mode faks T.30/T.38/G.711 |
|
|
• DTMF |
|
|
• Telpon darurat (karo protokol SIP) |
|
|
Port USB |
• USB 2.0 |
|
• panyimpenan jaringan basis FTP |
|
|
• Enggo bareng File / Print adhedhasar SAMBA |
|
|
• Fungsi DLNA |
|
|
Ngirit daya |
COC V7 |
Kelas B+
Sensitivitas panrima: -27 dBm nganti -29 dB
Daya optik kakehan: –8 dBm
Dawane gelombang: US 1310 nm, DS 1490 nm
Wavelength Blocking Filter (WBF) saka G.984.5
Pemetaan fleksibel antarane port GEM lan TCONT
GPON: konsisten karo SN utawa sandi bukti asli ditetepake ing G.984.3
Dwi-arah FEC
SR-DBA lan NSR-DBA
Tipe B (single-homing lan dual-homing)
Tag VLAN basis port Ethernet lan mbusak tag
1: 1 VLAN, N: 1 VLAN, utawa transmisi transparan VLAN
Watesan jumlah alamat MAC sing dipelajari
sinau alamat MAC
Kacepetan port otomatis (10/100/1000 Mbit/s)
RUN maksimum: 4
711A/μ, G.729a/b, lan G.722 encoding/decoding
30/T.38/G.711 mode faks
Telpon darurat (karo protokol SIP)
